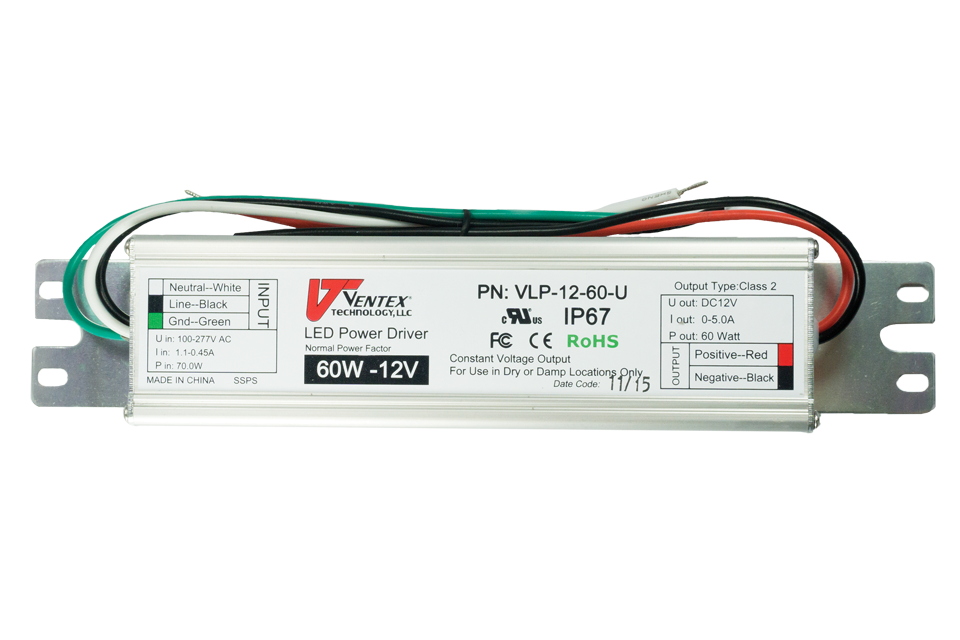

VLP-12-60-U

Class 2 LED Power Supply

60W constant voltage output

Features

  • Universal input voltage 100-277VAC
  • Meets UL, CE, EMC, FCC and ROHS certifications
  • Aluminum shell
  • Silicone potted
  • 100% full load burn-in tested
  • Dry or damp rated

5-Year Warranty

Specs

PERFORMANCE

Input Voltage 100-277VAC
Input Current 1.1A-0.45A
Input Frequency 47-63Hz
Power Factor Normal
Output Voltage DC12V+/-3%
Output Current 0-5.0 Amps
Output Power 60W max.

PHYSICAL

Length 6.7 in 171.0 mm
Width 1.9 in 48.5 mm
Height 1.4 in 35.5 mm
Mounting Length 9.4 in 240.0 mm
Weight 18.3 oz 520 g
Lead Lengths 7.8 in +/- .4 in 200 mm +/- 10 mm

SAFETY

Over Current Protection 110-120%
Short Circuit Protection Hiccup mode, auto recover
Other Protection Over voltage
UL UL879, UL8750, CSA C22.2 No. 207-M89
CE-LVD EN61347-1:2008+A1:2011, +A2:2013, EN61347-2-13:2014

ENVIRONMENTAL

CE-EMC EN55015, EN61547, EN61000
FCC FCC 47 CFR PART 15, CLASS B
IP Rating IP67
Operating Temperature -22ºF to 140ºF / -30ºC to 60ºC
Storage Temperature -40ºF to 185ºF / -40ºC to 85ºC
Relative Humidity 20 to +90% RH non-condensing
